Good Quality Guidance Ins Guidance System-IMU Measurement Unit
  • name
  • name
  • name
  • name

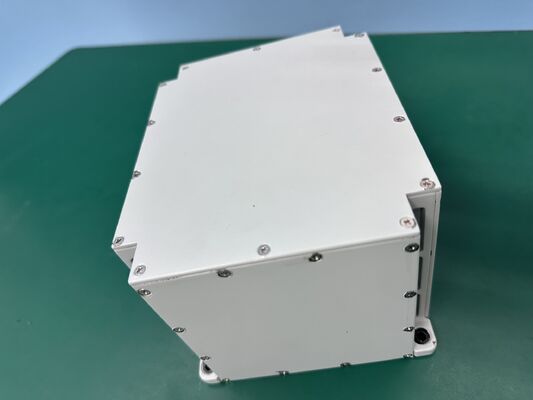

Good Quality Guidance Ins Guidance System-IMU Measurement Unit

MOQ: 1
Standard Packaging: 30cm*30cm*28cm
Delivery Period: 7days
Payment Method: T/T
Supply Capacity: 100/1day
Details Information
Product Description
Detail Information
Place of Origin
WUHAN
Brand Name
CSSC
Certification
GTD528731594
Model Number
DP-M-99UA
Highlight:

good quality guidance system

,

IMU Measurement Ins Guidance System

Product Description
Deep pilot Model DP-M-99UA
Item indicator Description Parameter
Gyro Zero bias Bias stability (10s) 0.005°/h
Zero bias stability at variable temperature (100s) 0.02°/h
Scaling Factor Scale factor nonlinearity ≤20ppm
Other indicators Random walk coefficient 0.0005°/½h
Input range 400°/s
Accelerometer Deviation Zero bias repeatability 20μg
Zero bias Bias temperature sensitivity 20μg/℃
Scaling Factor Scale factor repeatability 20ppm
Scale factor temperature sensitivity 20ppm/℃
Range indicators Input range ±20g
Features Environmental performance Operating temperature  -40℃～60℃
Storage temperature  -45℃～70℃
General Requirements Power supply 18～36V(DC)
Stable power consumption ≤16W
Mounting hole diameter 4-Φ5.5mm
Dimensions(mm) 130*130*110
Weight ≤2200g
