Optical Fiber Gyroscope for Marine, Aerospace, and Vehicle Navigation
  • name

Optical Fiber Gyroscope for Marine, Aerospace, and Vehicle Navigation

MOQ: 1 set
Delivery Period: 30 work days
Supply Capacity: 5000 set per year
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Star & Inertia Technology
Technical System:
Single-axis
Settling Time:
10s
Measuring Range:
≥±400°/sec
Accuracy:
0.01~0.003°/hr（100sec）
Power Supply:
+5V
Power Consumption:
≤3W
Data Output:
RS-422
Size:
98mm×98mm×35mm
Weight:
＜560g
Vibration Screening:
20~500Hz，5.3g
Operating Temperature:
-45℃~+70℃
Storage Temperature:
-50℃～+85℃
Product Description

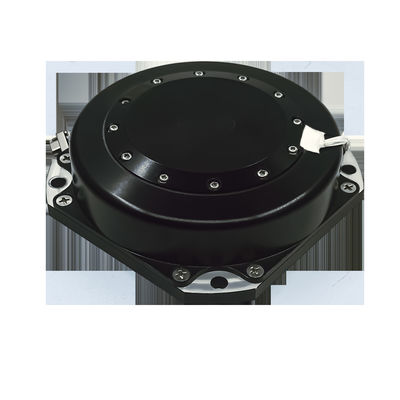

 The optical fiber gyroscope (FOG) is an all-solid-state angular rate sensor based on modern physical principles, with no moving parts, ensuring high reliability and excellent resistance to vibration and shock. Its data output via serial interface allows seamless integration with navigation or control systems, making it ideal for applications requiring precise rotational measurement.

Key Features:

  • Solid-State Design – No mechanical components, reducing maintenance and enhancing durability.

  • High Reliability – Stable performance under vibration, shock, and harsh environments.

  • Direct Data Output – Serial interface ensures easy connection to upper-level systems.

  • Precision Angular Rate Measurement – Provides accurate rotational data essential for navigation and orientation.

Applications:

  • Core sensor for inertial navigation systems (INS)

  • Angular rate measurement for marine vessels, land vehicles, and aerospace platforms

  • High-precision heading, roll, and pitch monitoring for ships and specialized vehicles

  • Integration with navigation and guidance systems requiring accurate angular velocity

Tags:

fog gyroscope,

optical gyroscope,

fiber gyroscope
