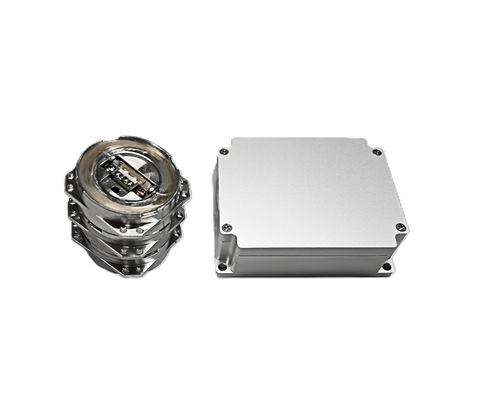

Optical Fiber Gyroscope for Navigation and Guidance Systems
  • name

Optical Fiber Gyroscope for Navigation and Guidance Systems

MOQ: 1 set
Delivery Period: 30 work days
Supply Capacity: 5000 set per year
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Star & Inertia Technology
Technical System:
Three-axis
Settling Time:
10s
Measuring Range:
≥±600°/sec
Accuracy:
0.1~0.04°/hr
Power Supply:
+5V
Power Consumption:
≤4.5W
Data Output:
RS-422
Size:
60mm×60mm×28mm，42mm×42mm×28mm
Weight:
＜350g
Vibration Screening:
20~2000Hz，6.06g
Operating Temperature:
-45℃~+70℃
Storage Temperature:
-50℃～+85℃
Product Description

The optical fiber gyroscope (FOG) is a solid-state gyroscopic sensor developed based on modern physical effects. It adopts a fully solid-state structure without any mechanical moving parts, ensuring stable and reliable performance. The system outputs angular rate data directly through a serial communication interface, allowing convenient integration with upper-level navigation, guidance, or control units.

Product Features

  • All-Solid-State Design
    No rotating or mechanical components, reducing wear and improving long-term stability.

  • High Environmental Robustness
    Designed to maintain stable operation under vibration, shock, and complex working conditions.

  • Serial Data Output
    Supports direct digital output for easy connection with host computers or embedded systems.

  • Compact and Modular Structure
    Suitable for integration into various inertial and navigation-related equipment.

Key Advantages

  • High Reliability
    Solid-state architecture enhances operational reliability and reduces maintenance requirements.

  • Strong Anti-Vibration and Anti-Shock Performance
    Suitable for mobile platforms and harsh environments.

  • Good System Compatibility
    Standard communication interfaces enable seamless integration with navigation and control systems.

  • Long Service Life
    Absence of mechanical wear improves durability and lifecycle performance.

Applications

  • Core angular rate sensor for inertial navigation systems (INS)

  • Navigation and guidance systems for marine vessels, land vehicles, and aerospace platforms

  • Attitude and heading measurement in integrated navigation equipment

  • Motion sensing for industrial control and precision positioning systems

  • Orientation monitoring in unmanned systems and specialized platforms

Tags:

fog gyroscope,

optical gyroscope,

fiber gyroscope
