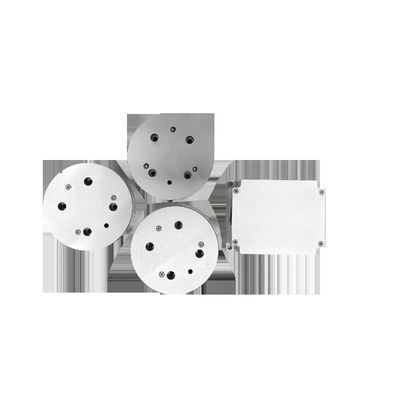

Optical Fiber Gyroscope Solid-State High-Precision Gyro Sensor
  • name

Optical Fiber Gyroscope Solid-State High-Precision Gyro Sensor

MOQ: 1 set
Delivery Period: 30 work days
Supply Capacity: 5000 set per year
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Star & Inertia Technology
Technical System:
Three-axis
Settling Time:
10s
Measuring Range:
≥±600°/sec
Accuracy:
0.04~0.042°/hr
Power Supply:
+5V
Power Consumption:
≤4.5W
Data Output:
RS-422
Size:
60mm×60mm×28mm，φ50mm×19mm
Weight:
＜500g
Vibration Screening:
20~2000Hz，6.06g
Operating Temperature:
-45℃~+70℃
Storage Temperature:
-50℃～+85℃
Product Description

The Optical Fiber Gyroscope (FOG) is an advanced gyro meter based on modern physical principles, designed entirely in solid-state with no moving parts. It provides high reliability and excellent anti-vibration and anti-shock performance, ensuring stable operation in demanding environments. Data outputs are transmitted directly via serial port, offering seamless compatibility with upper-level computers and control systems, making it ideal for navigation, inertial measurement units (IMUs), UAVs, robotics, and industrial applications.

Tags:

fog gyroscope,

optical gyroscope,

fiber gyroscope
