Marine Laser Inertial Navigation System Vehicle-Mounted Fiber Optic Inertial Navigation System
  • name

Marine Laser Inertial Navigation System Vehicle-Mounted Fiber Optic Inertial Navigation System

MOQ: 1 set
Delivery Period: 30 work days
Supply Capacity: 100 set per year
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Star & Inertia Technology
Alignment Time:
≤5min
Position（Pure Inertial）:
≤5nm/1hr
Position（Satellite Assis）:
Better Than Satellite Accuracy
Heading（Pure Inertial）:
≤0.3°sec(L)
Heading（Satellite Assis）:
≤3.6′
Pitch And Roll（Pure Inertial）:
≤0.08°
Pitch And Roll（Satellite Assis:
≤0.03°
Speed（Pure Inertial）:
≤3.0m/s
Speed（Satellite Assist）:
0.2m/s
Weight （kg）:
＜1.7
Environmental Adaptation:
Meet Temperature, Vibration, Electromagnetic And Other Environment Requirements
Power And Interface:
Power Supply DC18V~36V；Digital Outputs With Network Port, RS422 Serial Port, CAN Port, Etc.
Product Description

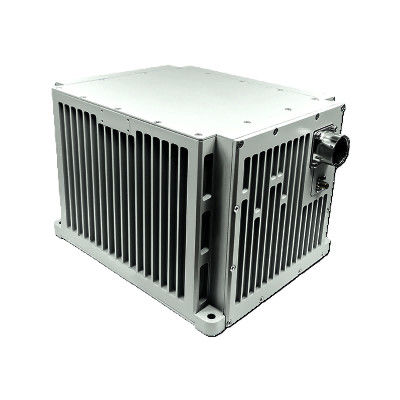

The fiber optic inertial navigation system (FOG INS) uses fiber optic gyroscopes and quartz accelerometers as its core sensors. Built on a strapdown technology architecture and powered by advanced high-speed navigation software, it provides real-time navigation data including heading, roll, pitch, speed, and position. The system supports multiple operating modes, including inertial-only navigation, inertial/GNSS hybrid navigation, and autonomous inertial navigation, offering precise navigation capabilities for a wide range of land and marine platforms.

Key Features:

  1. High Accuracy – Precision fiber optic gyroscopes and accelerometers ensure reliable navigation information.

  2. Real-Time Output – Continuous data delivery for dynamic operations.

  3. Flexible Operation Modes – Supports inertial-only, GNSS-assisted, and autonomous modes.

  4. Advanced Navigation Processing – Efficient algorithms for fast initialization and accurate measurements.

  5. Platform Versatility – Adaptable for vehicles, autonomous platforms, and specialized applications.

Applications:

  • Vehicle-mounted inertial navigation for land and marine platforms

  • Autonomous and intelligent vehicles

  • Military and specialized vehicles

  • Construction, mining, and industrial machinery
