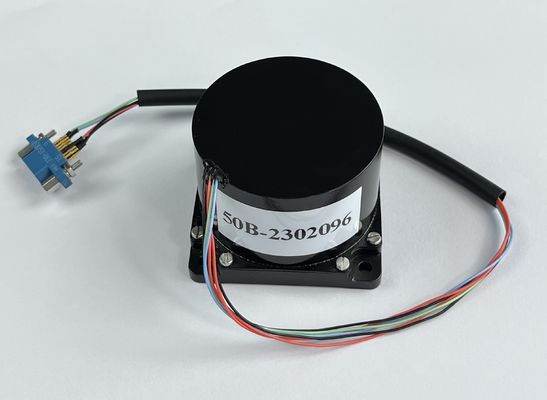

Single-Axis Compact FOG Interferometric Fiber Optic Gyroscope System For Navigation
  • name

Single-Axis Compact FOG Interferometric Fiber Optic Gyroscope System For Navigation

MOQ: 1 set
Price: $1000-$100000
Delivery Period: 30 work days
Supply Capacity: 5000 set per year
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Star & Inertia Technology
Performance\Dynamic Range:
≥±400°/s
Performance\Bias In-run:
＜1°/h
Performance\Accuracy（100sec）:
0.1°/h~0.04°/h
Performance\ARW（Angular Random Walk）:
＜0.03°/√hr,1σ
Performance\Vibration Screening:
20~2000Hz，6.06g
Performance\Bandwidth:
＞200Hz
Electrical Interface\Turn On Time:
10s
Electrical Interface\Output Signal Format:
RS-422
Electrical Interface\Built In Self-test:
--
Electrical Interface\Output Signal Update Rate:
500Hz~4000Hz
Electrical Interface\Output Signal Baud Rate:
115200bps~921600bps
Electrical Interface\Operating Temperature:
- 40℃ ~ + 70℃
Electrical Interface\Storage Temperature:
- 55℃ ~ + 85℃
Physical Specifications\Power Supply:
5V
Physical Specifications\Connector (9 Pins):
J30JZ/XN9TJCAL01
Physical Specifications\Power Consumption:
≤4.5w
Physical Specifications\MTBF (per MIL-HDBK-217-F):
＞100000hr
Physical Specifications\Weight:
≤350g
Physical Specifications\Dimensions:
42mm×42mm×14mm
Product Description

The compact fiber optic inertial navigation system (FOG INS) combines a central processor with multiple remote fiber optic gyroscope sensors to deliver high-bandwidth, real-time angular rate and orientation measurements. Designed for space-constrained vehicle applications, it is suitable for autonomous, military, and industrial land platforms.

Key Features:

  1. Configurable Accuracy – Tailor performance for mission-specific requirements.

  2. Mechanical Simplicity – Minimal moving parts for enhanced reliability.

  3. Immediate Readiness – Rapid initialization and real-time data output.

  4. Advanced Signal Processing – High-speed computation ensures precise navigation parameters.

  5. Cost Efficiency – Reduced lifecycle costs through rugged, durable design.

Applications:

  • Vehicle-mounted inertial navigation for land platforms

  • Autonomous and intelligent ground vehicles

  • Military and specialized vehicles

  • Construction, mining, and heavy machinery


Series FOG Series
Performance Dynamic Range ≥±400°/s
Bias in-run  ＜1°/h
Accuracy(100sec) 0.1°/h~0.04°/h
ARW(Angular random walk) ＜0.03°/√hr,1σ
Vibration screening 20~2000Hz,6.06g
Bandwidth ＞200Hz
Electrical Interface Turn on time 10s
Output signal format RS-422
Built in self-test  --
Output signal update rate 500Hz~2000Hz
Output signal baud rate 230400bps~921600bps
Operating temperature  - 40℃ ~ + 70℃
Storage temperature  - 55℃ ~ + 85℃
Physical Specifications Power supply 5V
Connector (9 pins) J30JZ/XN9TJCAL01
Power consumption ≤4.5w
MTBF (per MIL-HDBK-217-F) ＞100000hr
Weight ≤350g
Dimensions 42mm×42mm×14mm
