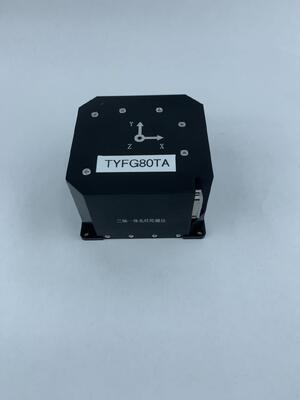

Attitude and Heading Reference System (AHRS)-3-Axis Integrated Gyroscope

MOQ: 1
Price: 89000RMB-119000RMB
Standard Packaging: 30cm*30cm*28cm
Delivery Period: 7days
Payment Method: T/T
Supply Capacity: 100/1day
Details Information
Product Description
Detail Information
Place of Origin
wuhan
Brand Name
CSSC
Certification
FLk851624795
Model Number
DP-FOG-A98ST
Highlight:

3-axis AHRS gyroscope system

,

fiber optic AHRS sensor

,

integrated gyroscope attitude reference

Product Description
Series FOG Series
Deep pilot Model DP-FOG-A98ST
Performance Dynamic Range ≥±400°/s
Bias in-run  ＜1°/h
Accuracy(100sec) 0.005°/h~0.003°/h
ARW(Angular random walk) ＜0.0008°/√hr,1σ
Vibration screening 20~2000Hz,6.06g
Bandwidth ＞250Hz
Electrical Interface Turn on time 10s
Output signal format RS-422
Built in self-test  --
Output signal update rate 500Hz~4000Hz
Output signal baud rate 230400bps~921600bps
Operating temperature  - 40℃ ~ + 75℃
Storage temperature  - 55℃ ~ + 85℃
Physical Specifications Power supply 5V
Connector (9 pins) J30JZ/XN9TJCAL01
Power consumption ≤4.5w
MTBF (per MIL-HDBK-217-F) ＞150000hr
Weight ≤1200g
Dimensions Φ98mm×26mm


Tags:
