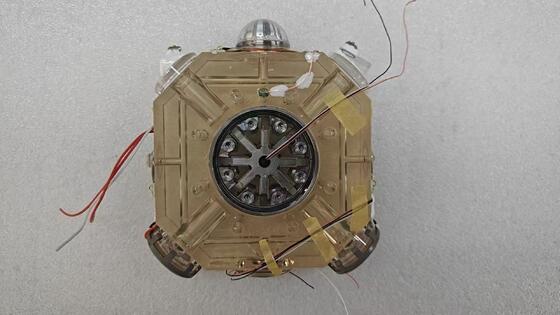

Inertial Reference System-Super high precision laser gyroscope
  • name

Inertial Reference System-Super high precision laser gyroscope

MOQ: 1
Price: 89000-169000RMB
Standard Packaging: 30cm*30cm*28cm
Delivery Period: 14days
Payment Method: T/T
Supply Capacity: 180/1days
Details Information
Product Description
Detail Information
Place of Origin
china
Brand Name
CSSC
Certification
KGF587412638
Model Number
DP120 RLG
Product Description

DP120 RLG

1.  Overview

The D P 120 is a Large-sized RLG designed for XXXXXX.

2.  Performance

Tab 1. D P 120 RLG



NO.

Specifications

Range

1

Bias stability

≤0.0012°/h；0.0010°/h(typical)

2

Bias repeatability

≤0.0005°/h；0.0003°/h(typical)

3

Random walk coefficient

≤0.0002°/h1/2

4

Scale factor

1.434 ″/pulse

5

Measuring range

>500 °/s



6



Dither frequency

340±10Hz

400±10Hz

460±10Hz

7

Working temperature

-40℃~70℃

3.  General Characteristics

(1)Dimensions(L×W×H):≤150mm×128mm×33mm(Include dither feedback parts)；

(2)Basic model RLG weight:≤1250g.

4.  External Interfaces

4.1 Mechanical Interface

Inertial Reference System-Super high precision laser gyroscope 0

Fig1. DP120 RLG mechanical Interface

The mechanical interface shown in figure 1 ,where the unit is fastened with four



4.2 Electrical Interface

Tab 2. D P 120 RLG electrical Interface



NO.

Name

Type of wires

Annotation

1

Cathode of high voltage

AGR-7/0.12(black)

Anode 1

2

Anode 1 of high voltage

AGR-7/0.12(red)

Anode 2

3

Anode 2 of high voltage

AGR-7/0.12(red)

Cathode

4

Dither wheel driving

AF0.013(red)

DIT-1

5

Dither wheel GND

AF0.013(black)

DIT-2

6

PLC Voltage

AF0.013(red)

V1

7

PLC Control 1

AF0.013(black)

PLC1

8

PLC Control 2

AF0.013(black)

PLC2

9

PLC GND

AF0.013(white)

V2

10

Light intensity

AF0.013(red)

L1

11

Light intensity GND

Wire shielding layer

GND1

12

Gyroscope output A

AF0.013(red)

Asin

13

Gyroscope output B

AF0.013(black)

Bsin

14

Gyroscope output GND

Wire shielding layer

GND2

15

Temperature Output

AF0.013(red)

PT1

16

Temperature COM

AF0.013(white)

PT-COM

17

LED+

AF0.013(red)

LED+

18

LED-

AF0.013(white)

LED-




Tags:

ring laser gyro,

rlg gyro,

ring gyroscope
