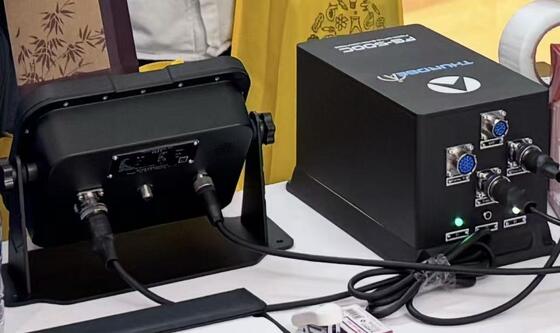

Military INS, Strategic Grade INS, Tactical Grade INS-Inertial navigation system➕Display control
  • name
  • name

Military INS, Strategic Grade INS, Tactical Grade INS-Inertial navigation system➕Display control

MOQ: a
Standard Packaging: 50cm*40cm*38cm
Delivery Period: 14days
Payment Method: T/T
Supply Capacity: 100/1day
Details Information
Product Description
Detail Information
Place of Origin
wuhan
Brand Name
CSSC
Certification
JKF587412368
Model Number
DP-D-A1
Product Description
 Series Aerospace Inertial Navigation System(INS-A)

Deep pilot Model DP-D-A1
DP-D-A1
Accelerometer Months Bias Repeatability(1σ) ≤30μg
Months Scale Factor Accuracy(1σ) ≤30ppm
Gyro Bias Repeatability(1σ) ≤0.008°/hr
Scale Factor Accuracy(1σ) ≤10ppm
Random walk(1σ) ≤0.003°/√hr
Features Position Accuracy Pure inertia ≤1nm/1h,CEP
INS/GNSS combination better than satellite accuracy
Speed Accuracy Pure inertia ≤1.2m/s,RMS
INS/GNSS combination ≤0.2m/s,RMS
Angular Rate ≥±400°/sec
Angular Acceleration 100000°/sec2
Acceleration ＞25g
Angular Attitude  Any Orientation
Input/output 3 RS422 full-duplex serial ports, 1 100M Ethernet port
Alignment time ＜5min
AHRS Applications Performance Heading Accuracy Pure inertia ≤0.05°sec(L),RMS
INS/GNSS combination ≤0.03°,RMS
Pitch & Roll Accuracy Pure inertia ≤0.03°,RMS
INS/GNSS combination ≤0.02°,RMS
Characteristics Power consumption ＜20W
Dimensions(Lmm×Wmm×Hmm) 195×160×108
Weight ＜3.9kg
Temperature  -40℃~60℃
Shock 15g,Half-sine wave 11ms
Input Voltage DC24V(±25%)
cooling Conduction to mounting plate
Vibration  20~2000Hz,6.06g
MTBF ＞20000 hours


Tags:
