Attitude and Heading Reference System (AHRS)-Resonant FOG (RFOG)
  • name
  • name

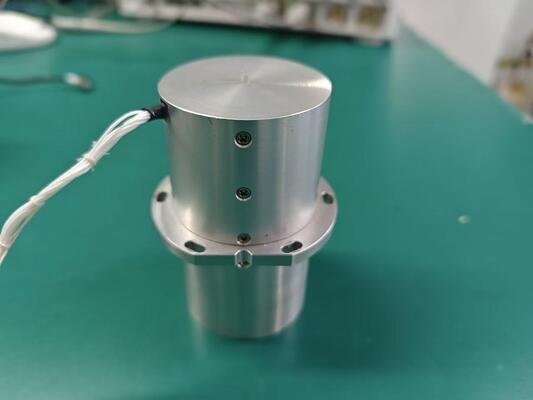

Attitude and Heading Reference System (AHRS)-Resonant FOG (RFOG)

MOQ: 1
Price: 15000-39000RMB
Standard Packaging: 30cm*30cm*28cm
Delivery Period: 7days
Payment Method: T/T
Supply Capacity: 200/1day
Details Information
Product Description
Detail Information
Place of Origin
WUHAN
Brand Name
CSSC
Certification
DIJ85933147
Model Number
DP-FOG-D50D
Product Description
Series FOG Series
Deep pilot Model DP-FOG-D50D
Performance Dynamic Range ≥±400°/s
Bias in-run  ＜2°/h
Accuracy(100sec) 0.5°/h~0.2°/h
ARW(Angular random walk) ＜0.03°/√hr,1σ
Vibration screening 20~2000Hz,6.06g
Bandwidth ＞200Hz
Electrical Interface Turn on time 10s
Output signal format RS-422
Built in self-test  --
Output signal update rate 500Hz~4000Hz
Output signal baud rate 115200bps~921600bps
Operating temperature  - 40℃ ~ + 70℃
Storage temperature  - 55℃ ~ + 85℃
Physical Specifications Power supply 5V
Connector (9 pins) J30J-15TJL
Power consumption ≤3W
MTBF (per MIL-HDBK-217-F) ＞150000hr
Weight ≤160g
Dimensions 42mm×42mm×47mm


Tags:

fog gyroscope,

optical gyroscope,

fiber gyroscope
