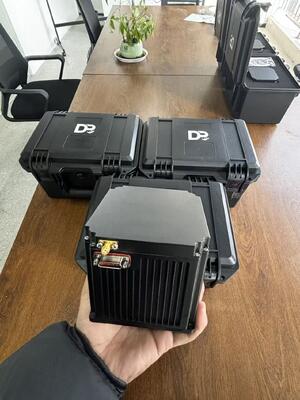

Marine Inertial Navigation System-Marine GNSS/INS Navigation-INS Coasting / Dead Reckoning
  • name

Marine Inertial Navigation System-Marine GNSS/INS Navigation-INS Coasting / Dead Reckoning

MOQ: 1
Standard Packaging: 30cm*30cm*28cm
Delivery Period: 7days
Payment Method: T/T
Supply Capacity: 100/1day
Details Information
Product Description
Detail Information
Place of Origin
WUHAN
Brand Name
CSSC
Certification
JHS514302865
Model Number
DP-D-M2A
Highlight:

Marine GNSS INS Navigation System

,

GNSS INS Navigation System

Product Description
Series Maritime Inertial Navigation System(INS-M)
Deep pilot Model DP-D-M2A
Accelerometer Months Bias Repeatability(1σ) ≤30μg
Months Scale Factor Accuracy(1σ) ≤30ppm
Gyro Bias Repeatability(1σ) ≤0.006°/hr
Scale Factor Accuracy(1σ) ≤5ppm
Random walk(1σ) ≤0.002°/√hr
Features Angular Rate ≥±400°/sec
Angular Acceleration 100000°/sec2
Acceleration ＞25g
Speed accuracy(Pure inertia) ≤1.2kn,RMS
Speed accuracy(GNSS combination) ≤0.4kn,RMS
Angular Attitude  Any Orientation
Startup time ≤10sec
Input/output 3 RS422 full-duplex serial ports, 1 100M Ethernet port
Alignment time ≤15min
Position accuracy Pure inertia ≤1nm/2h,CEP
INS/DVL Combination ≤0.3%D,RMS
INS/GNSS Combination better than satellite accuracy
Heading Accuracy Pure inertia ≤0.03°sec(L),RMS
INS/GNSS combination ≤0.02°,RMS
Pitch & Roll Accuracy Pure inertia ≤0.02°,RMS
INS/GNSS combination ≤0.01°,RMS
Characteristics Power consumption ＜30W
Dimensions(Lmm×Wmm×Hmm) 193×169×160
Weight ＜6kg
Temperature  -40℃~60℃
Shock 15g,Half-sine wave 11ms
Input Voltage DC24V(±25%)
cooling Conduction to mounting plate
Vibration  20~2000Hz,6.06g
MTBF ＞20000 hours
