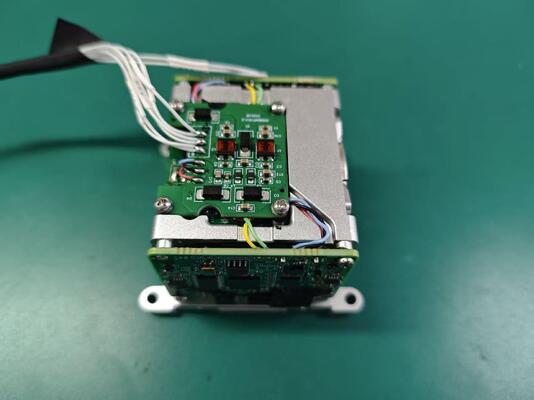

World's Top Inertial Navigation System IMU With The Global Positioning System
  • name

World's Top Inertial Navigation System IMU With The Global Positioning System

MOQ: 1
Standard Packaging: 50cm*40cm*38cm
Delivery Period: 14days
Payment Method: T/T
Supply Capacity: 50/1day
Details Information
Product Description
Detail Information
Place of Origin
WUHAN
Brand Name
CSSC
Certification
KJT203698578
Model Number
DP-D-L4AA
Highlight:

Global Positioning System IMU

,

Inertial Navigation System IMU

Product Description
Series Land Inertial Navigation System(INS-L)
Deep pilot Model DP-D-L4AA
Accelerometer Months Bias Repeatability(1σ) ≤10μg
Months Scale Factor Accuracy(1σ) ≤10ppm
Gyro Bias Repeatability(1σ) ≤0.003°/h
Scale Factor Accuracy(1σ) ≤5ppm
Random walk(1σ) ≤0.001°/√hr
Features Angular Rate ≥±400°/sec
Angular Acceleration 100000°/sec2
Acceleration ＞25g
Angular Attitude  Any Orientation
Input/output 3 RS422 full-duplex serial ports, 1 100M Ethernet port
Alignment time ≤8min
Position accuracy 10min zero speed correction ≤7m,CEP
INS/Odometer combination ≤0.1%D,RMS
INS/GNSS combination better than satellite accuracy
AHRS Applications Performance Heading Accuracy North finding/orientation accuracy ≤0.5mil,RMS
Heading bearing keeping accuracy/2h ≤0.5mil,RMS
INS/GNSS combination ≤0.3mil,RMS
Pitch & Roll Accuracy ≤0.2mil,RMS
Characteristics Power consumption ＜30W
Dimensions(Lmm×Wmm×Hmm) 232×186×160
Weight ＜8kg
Temperature  -40℃~60℃
Shock 15g,Half-sine wave 11ms
Input Voltage DC24V(±25%)
cooling Conduction to mounting plate
Vibration  20~2000Hz,6.06g
MTBF ＞20000 hours


Tags:

ins gyro,

inertial navigation unit,

navigation gyro
