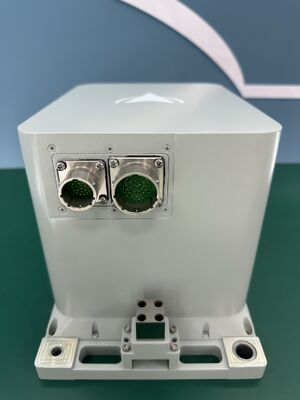

Attitude and Heading Reference System-AHRS Measurement Unit
  • name
  • name
  • name
  • name

Attitude and Heading Reference System-AHRS Measurement Unit

MOQ: 1
Standard Packaging: 30cm*30cm*28cm
Delivery Period: 30days
Payment Method: T/T
Supply Capacity: 50/1day
Details Information
Product Description
Detail Information
Place of Origin
WUHAN
Brand Name
CSSC
Certification
TDE486242022
Model Number
DP-M-H3AA
Mtbf:
＞20000 Hours
Vibration:
20~2000Hz,6.06g
Alignment Time:
＜10min
Applications:
Aerospace, Marine, UAV, Robotics
Type:
Attitude And Heading Reference System
Temperature:
-40℃~60℃
Outputformat:
Serial (RS232/RS485), CAN, Ethernet
Angular Rate:
≥±400°/sec
Measurementparameters:
Roll, Pitch, Yaw
Acceleration:
＞40g
Startup Time:
≤10sec
Angular Attitude:
Any Orientation
Product Description
 Series Attitude and Heading Reference Systems(AHRS)
Deep pilot Model DP-M-H3AA
Accelerometer Months Bias Repeatability(1σ) ≤30μg
Months Scale Factor Accuracy(1σ) ≤30ppm
Gyro Bias Repeatability(1σ) ≤0.001°/hr,1σ
Scale Factor Accuracy(1σ) ≤20ppm
Random walk(1σ) ≤0.002°/√hr
Features Angular Rate ≥±400°/sec
Angular Acceleration 100000°/sec2
Acceleration ＞25g
Angular Attitude  Any Orientation
Startup time 10 sec
Input/output 3 RS422 full-duplex serial ports, 1 100M Ethernet port
Alignment time ＜10min
AHRS Applications Performance Heading Accuracy Pure inertia ≤0.01°secL+0.01°/h,RMS
INS/Single-antenna  GNSS combination ≤0.01°,RMS
INS/Dual-antenna GNSS combination ≤0.01°,RMS
Pitch & Roll Accuracy Pure inertia ≤0.01°,RMS
INS/GNSS combination ≤0.01°,RMS
Characteristics Power consumption ＜15W
Dimensions(Lmm×Wmm×Hmm) 161×153×123
Weight ＜3.6kg
Temperature  -40℃~60℃
Shock 15g,Half-sine wave 11ms
Input Voltage DC24V(±25%)
cooling Conduction to mounting plate
Vibration  20~2000Hz,6.06g
MTBF ＞20000 hours
