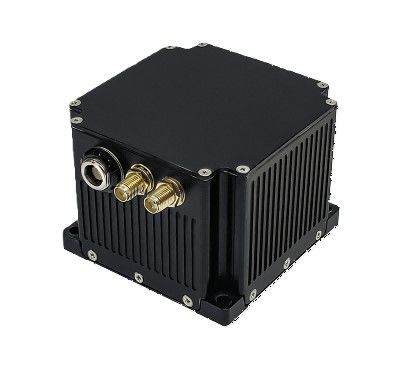

High-Accuracy AHRS System | Optical Gyro & Accelerometer-Based Inertial Navigation

MOQ:	1 set
Price:	$1000-$100000
Delivery Period:	30 work days
Payment Method:	T/T
Supply Capacity:	500 sets per year

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Star & Inertia Technology

Months Bias Repeatability（1σ）:

≤500μg

Months Scale Factor Accuracy（1σ）:

≤500ppm

Bias Repeatability（1σ）:

≤0.1°/hr

Scale Factor Accuracy（1σ）:

≤300ppm

Random Walk（1σ）:

≤0.03°/√hr

Angular Rate:

≥±400°/sec

Angular Acceleration:

100000°/sec2

Acceleration:

＞40g

Angular Attitude:

Any Orientation

Startup Time:

10 Sec

Input/output:

3 RS422 Full-duplex Serial Ports, 1 100M Ethernet Port

Heading Accuracy Pure Inertia:

≤0.2°/h

Heading Accuracy Satellite Navigation Combination:

≤1°sec

Pitch & Roll Accuracy Pure Inertia:

≤0.15°

Pitch & Roll Accuracy Satellite Navigation Combination:

≤0.1°

Power Consumption:

＜10W

Dimensions:

70×70×53

Weight:

＜500g

Temperature:

-40℃~60℃

Shock:

15g，Half-sine Wave 11ms

Input Voltage:

DC24V(±25%)

Cooling:

Conduction To Mounting Plate

Vibration:

20~2000Hz,6.06g

MTBF:

＞20000 Hours

Highlight:

AHRS System Instruments

optical gyro AHRS System

Gyro attitude heading reference system

Product Description

Our advanced Attitude and Heading Reference System (AHRS) integrates optical gyroscopes (FOG/RLG) and high-precision accelerometers (quartz/MEMS) within a modern strapdown inertial architecture. The system delivers accurate and reliable 3D orientation, heading, and motion data in both GNSS-coupled and pure inertial navigation modes, making it ideal for:

Defense and military platforms
Autonomous robots and automation systems
Land, air, and vehicle navigation
Marine and offshore navigation systems
Precision industrial and surveying equipment

Advantages:

Continuous, uninterrupted performance in GNSS-denied or signal-compromised environments
Flexible digital and serial data outputs for seamless integration with existing systems
Global operational capability – unlimited geographical coverage
Rugged, long-term reliability for continuous use in harsh environments

Series			Attitude and Heading Reference Systems(AHRS)
Accelerometer	Months Bias Repeatability(1σ)		≤500μg
	Months Scale Factor Accuracy(1σ)		≤500ppm
Gyro	Bias Repeatability(1σ)		≤0.1°/hr
	Scale Factor Accuracy(1σ)		≤300ppm
	Random walk(1σ)		≤0.03°/√hr
Features	Angular Rate		≥±400°/sec
	Angular Acceleration		100000°/sec2
	Acceleration		＞40g
	Angular Attitude		Any Orientation
	Startup time		10 sec
	Input/output		3 RS422 full-duplex serial ports, 1 100M Ethernet port
AHRS Applications Performance	Heading Accuracy	Pure inertia	≤0.2°/h
		Satellite navigation combination	≤1°sec
	Pitch & Roll Accuracy	Pure inertia	≤0.15°
		Satellite navigation combination	≤0.1°
Characteristics	Power consumption		＜10W
	Dimensions		70×70×53
	Weight		＜500g
	Temperature		-40℃~60℃
	Shock		15g,Half-sine wave 11ms
	Input Voltage		DC24V(±25%)
	cooling		Conduction to mounting plate
	Vibration		20~2000Hz,6.06g
	MTBF		＞20000 hours
