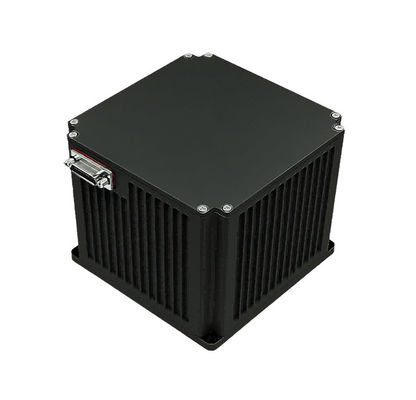

High-Accuracy AHRS System with Optical Gyro and Accelerometer

MOQ:	1 set
Delivery Period:	30 work days
Supply Capacity:	500 sets per year

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Star & Inertia Technology

Accelerometer/Months Bias Repeatability（1σ）:

≤500μg

Accelerometer/Months Scale Factor Accuracy（1σ）:

≤500ppm

Gyro/Bias Repeatability（1σ）:

≤0.1°/hr

Gyro/Scale Factor Accuracy（1σ）:

≤300ppm

Gyro/Random Walk（1σ）:

≤0.03°/√hr

Angular Rate:

≥±400°/sec

Angular Acceleration:

100000°/sec2

Acceleration:

＞40g

Angular Attitude:

Any Orientation

Speed accuracy:

≤3.0kn

Startup Time:

≤10sec

Input/output:

3 RS422 Full-duplex Serial Ports, 1 100M Ethernet Port

Heading Accuracy/Pure Inertia:

≤0.2°/h

Heading Accuracy/Satellite Navigation Combination:

≤1°sec

Pitch & Roll Accuracy/Pure Inertia:

≤0.15°

Pitch & Roll Accuracy/Satellite Navigation Combination:

≤0.1°

Power Consumption:

＜10W

Dimensions:

70×70×53mm

Weight:

＜500g

Temperature:

-40℃~60℃

Shock:

15g，Half-sine Wave 11ms

Input Voltage:

DC24V(±25%)

Cooling:

Conduction To Mounting Plate

Vibration:

20~2000Hz,6.06g

MTBF:

＞20000 Hours

Product Description

Our high-accuracy Attitude and Heading Reference System (AHRS) integrates optical gyroscopes (FOG/RLG) and high-precision accelerometers (Quartz/MEMS) within a robust strapdown inertial architecture. The system provides reliable 3D orientation, heading, and motion data, supporting both GNSS-coupled and pure inertial navigation modes. Its high-performance design ensures continuous and accurate operation across a wide range of platforms and environments.

Core Sensors: Optical Gyroscopes (FOG/RLG) + Quartz/MEMS Accelerometers
Navigation Modes: GNSS-coupled or pure inertial
Data Output: Flexible digital and serial interfaces for seamless integration

Applications

This high-accuracy AHRS system is suitable for multiple industries and platforms:

Defense and Military Platforms: Precise attitude and heading reference for land, air, and maritime systems
Robotics & Automation: High-precision orientation data for autonomous systems and industrial robots
Vehicle Navigation: Reliable 3D orientation for cars, trucks, and specialized vehicles
Marine Systems: Accurate heading and motion data for vessels and offshore platforms
Precision Industrial Equipment: Supports complex machinery and measurement applications

Advantages

Uninterrupted Performance Without GNSS: Operates reliably in GNSS-denied or signal-compromised environments
Flexible Data Output Options: Supports multiple digital and serial interfaces for easy integration
Unlimited Geographical Operation: Works globally without limitations
Continuous Operation Reliability: Engineered for long-term, uninterrupted use in harsh conditions
