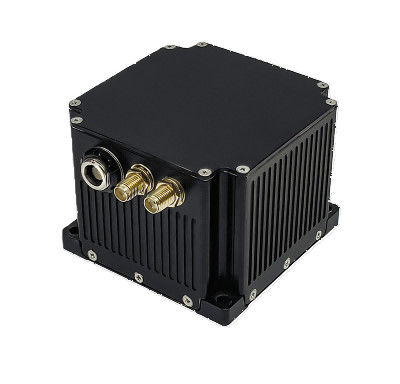

Advanced High-Accuracy AHRS System with Optical Gyroscope and Inertial Sensors
  • name

Advanced High-Accuracy AHRS System with Optical Gyroscope and Inertial Sensors

MOQ: 1 set
Delivery Period: 30 work days
Supply Capacity: 500 sets per year
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Star & Inertia Technology
Accelerometer/Months Bias Repeatability（1σ）:
≤500μg
Accelerometer/Months Scale Factor Accuracy（1σ）:
≤500ppm
Gyro/Bias Repeatability（1σ）:
≤0.1°/hr
Gyro/Scale Factor Accuracy（1σ）:
≤300ppm
Gyro/Random Walk（1σ）:
≤0.03°/√hr
Angular Rate:
≥±400°/sec
Angular Acceleration:
100000°/sec2
Acceleration:
＞40g
Angular Attitude:
Any Orientation
Speed ​​accuracy:
≤3.0kn
Startup Time:
≤10sec
Input/output:
3 RS422 Full-duplex Serial Ports, 1 100M Ethernet Port
Heading Accuracy/Pure Inertia:
≤0.2°/h
Heading Accuracy/Satellite Navigation Combination:
≤1°sec
Pitch & Roll Accuracy/Pure Inertia:
≤0.15°
Pitch & Roll Accuracy/Satellite Navigation Combination:
≤0.1°
Power Consumption:
＜10W
Dimensions:
70×70×53mm
Weight:
＜500g
Temperature:
-40℃~60℃
Shock:
15g，Half-sine Wave 11ms
Input Voltage:
DC24V(±25%)
Cooling:
Conduction To Mounting Plate
Vibration:
20~2000Hz,6.06g
MTBF:
＞20000 Hours
Product Description

Product Description

This advanced AHRS (Attitude and Heading Reference System) combines optical gyroscopes (FOG/RLG) with precision accelerometers (Quartz/MEMS) in a robust strapdown inertial architecture. The system delivers precise and reliable 3D orientation, heading, and motion data in both GNSS-assisted and fully inertial navigation modes. It ensures continuous operation in GNSS-denied environments, making it suitable for critical navigation and automation applications.

  • Core Technology: Optical Gyroscope (FOG/RLG) + High-Precision Accelerometers (Quartz/MEMS)

  • Navigation Modes: GNSS-assisted and pure inertial navigation

  • Data Interfaces: Flexible digital and serial outputs for seamless system integration

Applications

This high-accuracy AHRS system is widely used across multiple industries:

  • Military & Defense Systems: Reliable attitude and heading reference for land, air, and sea platforms

  • Autonomous Robotics & Industrial Automation: Accurate 3D motion control and positioning

  • Vehicle and Aviation Navigation: Maintains precise navigation in GNSS-compromised or denied environments

  • Marine and Offshore Operations: Designed for challenging marine and offshore conditions

  • Precision Industrial Equipment & Surveying: Supports high-accuracy measurement and orientation for complex tasks

Advantages

  • Reliable Performance Without GNSS: Operates continuously in environments where GNSS signals are weak or unavailable

  • Flexible Data Outputs: Supports multiple digital and serial communication protocols for easy integration

  • Global Operational Range: Unlimited geographic operation

  • Durable and Robust Design: Long-term reliability for continuous use in harsh conditions
