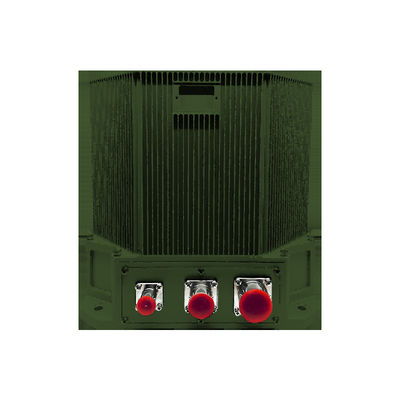

Automotive Laser Inertial Navigation Advanced Vehicle-Mounted Fiber Optic Navigation & Orientation System
  • name

Automotive Laser Inertial Navigation Advanced Vehicle-Mounted Fiber Optic Navigation & Orientation System

MOQ: 1 set
Delivery Period: 30 work days
Supply Capacity: 500 sets per year
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Star & Inertia Technology
Accelerometer/Months Bias Repeatability（1σ）:
≤20μg
Accelerometer/Months Scale Factor Accuracy（1σ）:
≤20ppm
Gyro/Bias Repeatability（1σ）:
≤0.008°/h
Gyro/Scale Factor Accuracy（1σ）:
≤5ppm
Gyro/Random Walk（1σ）:
≤0.003°/√hr
Angular Rate:
≥±400°/sec
Angular Acceleration:
100000°/sec2
Acceleration:
＞25g
Angular Attitude:
Any Orientation
Alignment Time:
≤8min
Input/output:
3 RS422 Full-duplex Serial Ports, 1 100M Ethernet Port
Position Accuracy/10min Zero Speed Correction:
≤10m
Position Accuracy/Inertial Navigation/odometer Combination:
≤0.3%D
Position Accuracy/North Finding/orientation Accuracy:
≤1.0mil
Position Accuracy/Bearing Keeping Accuracy Per 2h:
≤1.5mil
Position Accuracy/Combined Navigation Position Accuracy:
≤0.75mil
AHRS Applications Performance/Heading Accuracy:
≤0.75mil
AHRS Applications Performance/Pitch & Roll Accuracy:
≤0.35mil
Power Consumption:
＜20W
Dimensions:
195×160×108mm
Weight:
＜3.9kg
Temperature:
-40℃~60℃
Shock:
15g，Half-sine Wave 11ms
Input Voltage:
DC24V(±25%)
Cooling:
Conduction To Mounting Plate
Vibration:
20~2000Hz,6.06g
MTBF:
＞20000 Hours
Product Description

Product Description

This vehicle-mounted fiber optic navigation system (FOG INS) integrates laser and fiber optic gyroscopes with quartz accelerometers as its core sensors. Utilizing a strapdown inertial navigation system architecture and high-speed advanced navigation software, it delivers real-time navigation and orientation data for a wide range of land vehicles. The system supports multiple operational modes, including zero-speed correction, inertial/GNSS hybrid navigation, and inertial/odometer integration, providing complete navigation parameters to meet the requirements of diverse vehicle platforms.

Key Advantages

  • High-Precision Positioning: Core sensors ensure accurate measurement of vehicle position, velocity, and attitude.

  • Real-Time Data Delivery: Continuous output of navigation information supports dynamic vehicle operations.

  • Versatile Operation Modes: Zero-speed correction, inertial/GNSS hybrid, and inertial/odometer modes provide flexibility for different terrains and vehicle types.

  • Comprehensive System Integration: Full navigation parameters compatible with attitude heading reference systems (AHRS), inertial measurement units (IMU), and other onboard systems.

Applications

  • Automotive inertial navigation systems for land vehicles

  • Military and specialized vehicle navigation

  • Autonomous and intelligent ground vehicles

  • Construction, mining, and heavy machinery platforms

  • Any vehicle requiring high-precision, continuous navigation and orientation support
