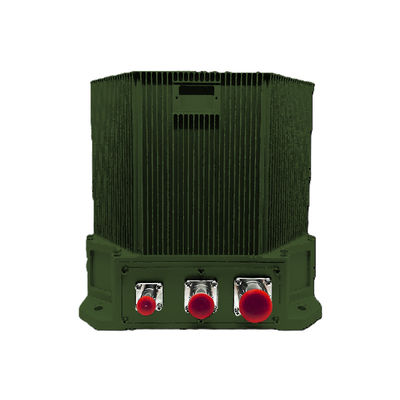

Automotive Laser Inertial Navigation Precision Vehicle-Mounted Optical Navigation System
  • name

Automotive Laser Inertial Navigation Precision Vehicle-Mounted Optical Navigation System

MOQ: 1 set
Delivery Period: 30 work days
Supply Capacity: 500 sets per year
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Star & Inertia Technology
Accelerometer/Months Bias Repeatability（1σ）:
≤20μg
Accelerometer/Months Scale Factor Accuracy（1σ）:
≤20ppm
Gyro/Bias Repeatability（1σ）:
≤0.008°/h
Gyro/Scale Factor Accuracy（1σ）:
≤5ppm
Gyro/Random Walk（1σ）:
≤0.003°/√hr
Angular Rate:
≥±400°/sec
Angular Acceleration:
100000°/sec2
Acceleration:
＞25g
Angular Attitude:
Any Orientation
Alignment Time:
≤8min
Input/output:
3 RS422 Full-duplex Serial Ports, 1 100M Ethernet Port
Position Accuracy/10min Zero Speed Correction:
≤10m
Position Accuracy/Inertial Navigation/odometer Combination:
≤0.3%D
Position Accuracy/North Finding/orientation Accuracy:
≤1.0mil
Position Accuracy/Bearing Keeping Accuracy Per 2h:
≤1.5mil
Position Accuracy/Combined Navigation Position Accuracy:
≤0.75mil
AHRS Applications Performance/Heading Accuracy:
≤0.75mil
AHRS Applications Performance/Pitch & Roll Accuracy:
≤0.35mil
Power Consumption:
＜20W
Dimensions:
195×160×108mm
Weight:
＜3.9kg
Temperature:
-40℃~60℃
Shock:
15g，Half-sine Wave 11ms
Input Voltage:
DC24V(±25%)
Cooling:
Conduction To Mounting Plate
Vibration:
20~2000Hz,6.06g
MTBF:
＞20000 Hours
Product Description

Product Description

This vehicle-mounted optical navigation system utilizes laser or fiber optic gyroscopes paired with quartz accelerometers as its core sensing components. Designed with a strapdown inertial navigation architecture and powered by high-speed advanced navigation software, it continuously provides accurate, real-time navigation and orientation data. The system operates in multiple modes, including zero-speed alignment, inertial/GNSS hybrid, and inertial/odometer integration, delivering complete navigation parameters for a variety of land vehicle platforms.

Key Advantages

  • Reliable Positioning and Orientation: Optical gyroscopes and quartz accelerometers offer precise measurement of vehicle attitude, velocity, and location.

  • Continuous Real-Time Output: Advanced processing ensures uninterrupted navigation data for dynamic operations.

  • Multi-Mode Flexibility: Zero-speed alignment, GNSS-assisted navigation, and odometer integration modes support diverse operational requirements.

  • Integration Ready: Full navigation parameters compatible with IMU (inertial measurement units) and AHRS (attitude heading reference systems) for seamless system integration.

Applications

  • Military and specialized ground vehicles

  • Autonomous and intelligent vehicles

  • Construction, mining, and heavy-duty machinery

  • Any land platform requiring high-precision, continuous navigation and orientation support
