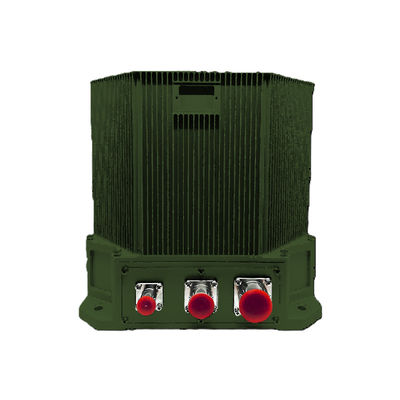

RLG INS Navigation System Modulated Inertial System For Military Vehicles

MOQ:	1 set
Price:	$1000-$100000
Delivery Period:	30 work days
Payment Method:	T/T
Supply Capacity:	500 sets per year

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Star & Inertia Technology

Accelerometer/Months Bias Repeatability（1σ）:

≤20μg

Accelerometer/Months Scale Factor Accuracy（1σ）:

≤20ppm

Gyro/Bias Repeatability（1σ）:

≤0.01°/hr,1σ

Gyro/Scale Factor Accuracy（1σ）:

≤5ppm

Gyro/Random Walk（1σ）:

≤0.003°/√hr

Angular Rate:

≥±400°/sec

Angular Acceleration:

100000°/sec2

Acceleration:

＞25g

Angular Attitude:

Any Orientation

Alignment Time:

≤15min

Input/output:

3 RS422 Full-duplex Serial Ports, 1 100M Ethernet Port

Position Accuracy/10min Zero Speed Correction:

≤5m

Position Accuracy/Inertial Navigation/odometer Combination:

≤0.08%D

Position Accuracy/North Finding/orientation Accuracy:

≤0.4mil

Position Accuracy/Bearing Keeping Accuracy Per 2h:

≤0.4mil

Position Accuracy/Combined Navigation Position Accuracy:

≤0.2mil

AHRS Applications Performance/Heading Accuracy:

≤0.2mil

AHRS Applications Performance/Pitch & Roll Accuracy:

≤0.2mil

Power Consumption:

＜40W

Dimensions:

Weight:

＜6.5kg

Temperature:

-40℃~60℃

Shock:

15g，Half-sine Wave 11ms

Input Voltage:

DC24V(±25%)

Cooling:

Conduction To Mounting Plate

Vibration:

20~2000Hz,6.06g

MTBF:

＞15000 Hours

Highlight:

Strapdown ins navigation system

military vehicles ins navigation system

military vehicles strapdown inertial system

Product Description

Our advanced Land RLG INS integrates precision optical gyros (RLG/FOG) and quartz accelerometers within a rugged strapdown architecture, delivering accurate and reliable navigation data for ground vehicles. The system supports flexible operational modes, including zero-velocity updates (ZUPT) and multi-sensor fusion, ensuring consistent performance even in GNSS-denied or challenging environments.

Applications:

Military combat and armored vehicles
Unmanned ground vehicles (UGVs)
Agricultural and industrial equipment
Special-purpose autonomous land platforms

Key Advantages:

Versatile initialization and alignment options for rapid deployment
Reliable navigation in GNSS-denied or degraded conditions
Robust operation in extreme environments with vibration, shock, and temperature resilience
Battle-tested reliability for mission-critical operations

Series		Land Inertial Navigation System(INS-L)
Accelerometer	Months Bias Repeatability(1σ)	≤20μg
Accelerometer	Months Scale Factor Accuracy(1σ)	≤20ppm
Gyro	Bias Repeatability(1σ)	≤0.01°/h
	Scale Factor Accuracy(1σ)	≤5ppm
	Random walk(1σ)	≤0.003°/√hr
Features	Angular Rate	≥±400°/sec
	Angular Acceleration	100000°/sec2
	Acceleration	＞25g
	Angular Attitude	Any Orientation
	Alignment time	≤15min
	Input/output	3 RS422 full-duplex serial ports, 1 100M Ethernet port
Position accuracy	10min zero speed correction	≤5m
	Inertial navigation/odometer combination	≤0.08%D
	North finding/orientation accuracy	≤0.4mil
	Bearing keeping accuracy/2h	≤0.4mil
	Combined navigation position accuracy	≤0.2mil
AHRS Applications Performance	Heading Accuracy	≤0.2mil
AHRS Applications Performance	Pitch & Roll Accuracy	≤0.2mil
Characteristics	Power consumption	＜40W
	Dimensions	--
	Weight	＜6.5kg
	Temperature	-40℃~60℃
	Shock	15g,Half-sine wave 11ms
	Input Voltage	DC24V(±25%)
	cooling	Conduction to mounting plate
	Vibration	20~2000Hz,6.06g
	MTBF	＞15000 hours
