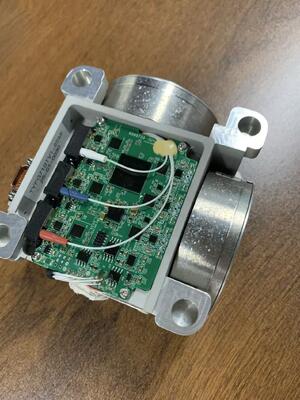

Fiber Optic Gyroscope INS​ (FOG-INS)-Attitude and Heading Reference System (AHRS)
  • name

Fiber Optic Gyroscope INS​ (FOG-INS)-Attitude and Heading Reference System (AHRS)

MOQ: 1
Price: 155000RMB
Standard Packaging: 30cm*30cm*28cm
Delivery Period: 7days
Payment Method: T/T
Supply Capacity: 100/1day
Details Information
Product Description
Detail Information
Place of Origin
china
Brand Name
CSSC
Certification
TGKM586304752
Model Number
M03MM
Highlight:

Fiber Optic Gyroscope INS

,

FOG-INS AHRS system

,

Fiber Optic Inertial Navigation System

Product Description
Accelerometer Months Bias Repeatability(1σ) ≤50μg
Months Scale Factor Accuracy(1σ) ≤50ppm
Gyro Bias Repeatability(1σ) ≤0.02°/hr
Scale Factor Accuracy(1σ) ≤50ppm
Random walk(1σ) ≤0.006°/√hr
Features Angular Rate ≥±400°/sec
Angular Acceleration 100000°/sec2
Acceleration ＞25g
Speed accuracy(Pure inertia) ≤3.0kn,RMS
Speed accuracy(GNSS combination) ≤0.4kn,RMS
Angular Attitude  Any Orientation
Startup time ≤10 sec
Input/output 3 RS422 full-duplex serial ports, 1 100M Ethernet port
Alignment time ≤15min
Position accuracy Pure inertia ≤4nm/1h,CEP
INS/DVL Combination ≤0.6%D,RMS
INS/GNSS Combination better than satellite accuracy
Heading Accuracy Pure inertia ≤0.2°sec(L),RMS
INS/GNSS combination ≤0.1°,RMS
Pitch & Roll Accuracy Pure inertia ≤0.04°,RMS
INS/GNSS combination ≤0.02°,RMS
Characteristics Power consumption ＜15W
Dimensions(Lmm×Wmm×Hmm) 110×110×100
Weight ＜1.7kg
Temperature  -40℃~60℃
Shock 15g,Half-sine wave 11ms
Input Voltage DC24V(±25%)
cooling Conduction to mounting plate
Vibration  20~2000Hz,6.06g
MTBF ＞20000 hours
