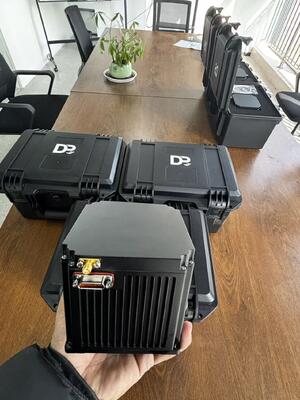

craft inertial navigation system-Strategic/Tactical/Commercial Grade INS

MOQ:	1
Standard Packaging:	30cm30cm28cm
Delivery Period:	7days
Payment Method:	T/T
Supply Capacity:	100/1day

Details Information

Product Description

Detail Information

Place of Origin

WUHAN

Brand Name

Certification

DJN125874028

Model Number

Deep pilot Model DP-M-A05A

Product Description

Series			Aerospace Inertial Navigation System(INS-A)
Deep pilot Model			DP-M-A05A
Accelerometer	Months Bias Repeatability(1σ)		≤30μg
	Months Scale Factor Accuracy(1σ)		≤30ppm
Gyro	Bias Repeatability(1σ)		≤0.01°/hr
	Scale Factor Accuracy(1σ)		≤30ppm
	Random walk(1σ)		≤0.005°/√hr
Features	Position Accuracy	Pure inertia	≤2nm/1h,CEP
		INS/GNSS combination	better than satellite accuracy
	Speed Accuracy	Pure inertia	≤1.5m/s,RMS
		INS/GNSS combination	≤0.2m/s,RMS
	Angular Rate		≥±400°/sec
	Angular Acceleration		100000°/sec2
	Acceleration		＞25g
	Angular Attitude		Any Orientation
	Input/output		3 RS422 full-duplex serial ports, 1 100M Ethernet port
Alignment time			＜5min
AHRS Applications Performance	Heading Accuracy	Pure inertia	≤0.1°sec(L),RMS
		INS/GNSS combination	≤0.05°,RMS
	Pitch & Roll Accuracy	Pure inertia	≤0.03°,RMS
		INS/GNSS combination	≤0.02°,RMS
Characteristics	Power consumption		＜15W
	Dimensions(Lmm×Wmm×Hmm)		130×130×110
	Weight		＜2.2kg
	Temperature		-40℃~75℃
	Shock		15g,Half-sine wave 11ms
	Input Voltage		DC24V(±25%)
	cooling		Conduction to mounting plate
	Vibration		20~2000Hz,6.06g
	MTBF		＞25000 hours
