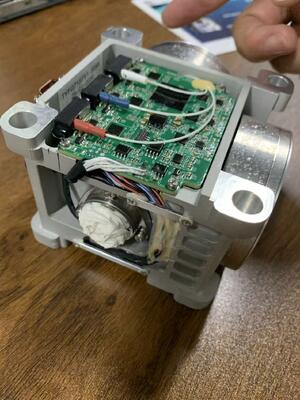

Global Positioning System-Inertial Navigation System-UAV GNSS/INS Navigation
  • name

Global Positioning System-Inertial Navigation System-UAV GNSS/INS Navigation

MOQ: 1
Price: 149000-170000RMB
Standard Packaging: 30cm*30cm*28cm
Delivery Period: 7days
Payment Method: T/T
Supply Capacity: 100/1day
Details Information
Product Description
Detail Information
Brand Name
CSSC
Certification
CKJ415874213
Model Number
DP-AAA3
Highlight:

UAV GNSS INS navigation system

,

Fiber optic inertial navigation system

,

GPS INS navigation for UAVs

Product Description
 Series Aerospace Inertial Navigation System(INS-A)
Deep pilot Model DP-AAA3
Accelerometer Months Bias Repeatability(1σ) ≤50μg
Months Scale Factor Accuracy(1σ) ≤50ppm
Gyro Bias Repeatability(1σ) ≤0.02°/hr
Scale Factor Accuracy(1σ) ≤50ppm
Random walk(1σ) ≤0.01°/√hr
Features Position Accuracy Pure inertia ≤4nm/1h,CEP
INS/GNSS combination better than satellite accuracy
Speed Accuracy Pure inertia ≤3.0m/s,RMS
INS/GNSS combination ≤0.2m/s,RMS
Angular Rate ≥±400°/sec
Angular Acceleration 100000°/sec2
Acceleration ＞25g
Angular Attitude  Any Orientation
Input/output 3 RS422 full-duplex serial ports, 1 100M Ethernet port
Alignment time ＜5min
AHRS Applications Performance Heading Accuracy Pure inertia ≤0.2°sec(L),RMS
INS/GNSS combination ≤0.1°,RMS
Pitch & Roll Accuracy Pure inertia ≤0.05°,RMS
INS/GNSS combination ≤0.03°,RMS
Characteristics Power consumption ＜15W
Dimensions(Lmm×Wmm×Hmm) 110×110×100
Weight ＜1.7kg
Temperature  -40℃~75℃
Shock 15g,Half-sine wave 11ms
Input Voltage DC24V(±25%)
cooling Conduction to mounting plate
Vibration  20~2000Hz,6.06g
MTBF ＞25000 hours


Tags:

strapdown inertial system,

fog inertial navigation system,

fog ins
