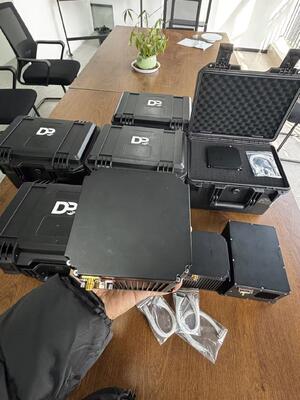

Vehicle Inertial Navigation System Automotive INS Land Vehicle Navigation-Inertial Measurement Unit (IMU)

MOQ:	1
Standard Packaging:	30cm30cm28cm
Delivery Period:	7days
Payment Method:	T/T
Supply Capacity:	100/1day

Details Information

Product Description

Detail Information

Place of Origin

WUHAN

Brand Name

Certification

AJU523069871

Model Number

DP-D-L4A

Highlight:

Automotive Inertial Navigation System

Land Vehicle Inertial Navigation System

Product Description

Series			Land Inertial Navigation System(INS-L)
Deep pilot Model			DP-D-L4A
Accelerometer	Months Bias Repeatability(1σ)		≤10μg
	Months Scale Factor Accuracy(1σ)		≤10ppm
Gyro	Bias Repeatability(1σ)		≤0.003°/h
	Scale Factor Accuracy(1σ)		≤5ppm
	Random walk(1σ)		≤0.001°/√hr
Features	Angular Rate		≥±400°/sec
	Angular Acceleration		100000°/sec2
	Acceleration		＞25g
	Angular Attitude		Any Orientation
	Input/output		3 RS422 full-duplex serial ports, 1 100M Ethernet port
Alignment time			≤8min
Position accuracy	10min zero speed correction		≤7m,CEP
	INS/Odometer combination		≤0.1%D,RMS
	INS/GNSS combination		better than satellite accuracy
AHRS Applications Performance	Heading Accuracy	North finding/orientation accuracy	≤0.5mil,RMS
		Heading bearing keeping accuracy/2h	≤0.5mil,RMS
		INS/GNSS combination	≤0.3mil,RMS
	Pitch & Roll Accuracy		≤0.2mil,RMS
Characteristics	Power consumption		＜30W
	Dimensions(Lmm×Wmm×Hmm)		232×186×160
	Weight		＜8kg
	Temperature		-40℃~60℃
	Shock		15g,Half-sine wave 11ms
	Input Voltage		DC24V(±25%)
	cooling		Conduction to mounting plate
	Vibration		20~2000Hz,6.06g
	MTBF		＞20000 hours
