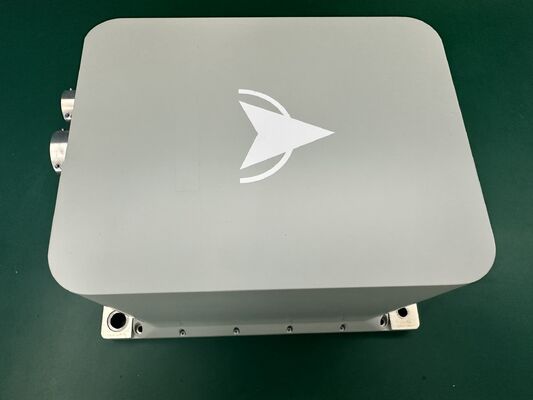

Anti-Interference AHRS Measurement Unit: Magnetometer Calibration and Geomagnetic Disturbance Compensation Technology
  • name
  • name
  • name
  • name

Anti-Interference AHRS Measurement Unit: Magnetometer Calibration and Geomagnetic Disturbance Compensation Technology

MOQ: 1
Standard Packaging: 30cm*30cm*28cm
Delivery Period: 14days
Payment Method: T/T
Supply Capacity: 100/1day
Details Information
Product Description
Detail Information
Place of Origin
WUHAN
Brand Name
CSSC
Certification
ILK520321896
Model Number
DP-M-H02AA
Vibration:
20~2000Hz,6.06g
Outputformat:
Quaternion, Euler Angles, Or Rotation Matrix
Angular Attitude:
Any Orientation
Accuracy:
±0.5° (Roll/Pitch), ±1° (Heading)
Cooling:
Conduction To Mounting Plate
Shock:
15g，Half-sine Wave 11ms
Updaterate:
Up To 1000 Hz
Mtbf:
＞20000 Hours
Product Description
 Series Attitude and Heading Reference Systems(AHRS)
Deep pilot Model DP-M-H02AA
Accelerometer Months Bias Repeatability(1σ) ≤100μg
Months Scale Factor Accuracy(1σ) ≤100ppm
Gyro Bias Repeatability(1σ) ≤0.03°/hr,1σ
Scale Factor Accuracy(1σ) ≤100ppm
Random walk(1σ) ≤0.005°/√hr
Features Angular Rate ≥±400°/sec
Angular Acceleration 100000°/sec2
Acceleration ＞25g
Angular Attitude  Any Orientation
Startup time 10 sec
Input/output 3 RS422 full-duplex serial ports, 1 100M Ethernet port
Alignment time ＜10min
AHRS Applications Performance Heading Accuracy Pure inertia ≤0.5°secL+0.1°/h,RMS
INS/Single-antenna  GNSS combination ≤0.3°,RMS
INS/Dual-antenna GNSS combination ≤0.1°,RMS
Pitch & Roll Accuracy Pure inertia ≤0.1°,RMS
INS/GNSS combination ≤0.03°,RMS
Characteristics Power consumption ＜15W
Dimensions(Lmm×Wmm×Hmm) 100×100×90
Weight ＜1.35kg
Temperature  -40℃~60℃
Shock 15g,Half-sine wave 11ms
Input Voltage DC24V(±25%)
cooling Conduction to mounting plate
Vibration  20~2000Hz,6.06g
MTBF ＞20000 hours


Tags:

attitude heading reference system,

system ahrs,

ahrs mems
