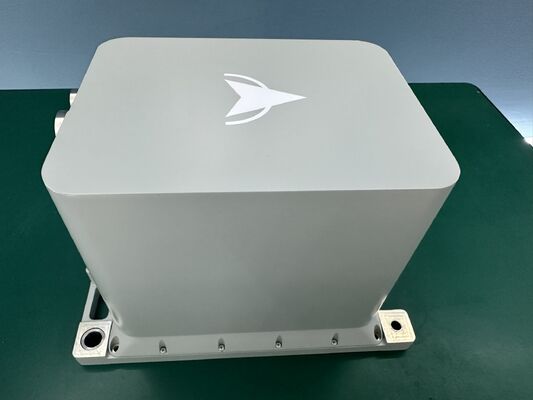

Integration Solution of Measurement Unit in AHRS/GNSS/INS Integrated Navigation System
  • name
  • name
  • name
  • name

Integration Solution of Measurement Unit in AHRS/GNSS/INS Integrated Navigation System

MOQ: 1
Standard Packaging: 30cm*30cm*28cm
Delivery Period: 30days
Payment Method: T/T
Supply Capacity: 50/1day
Details Information
Product Description
Detail Information
Place of Origin
WUHAN
Brand Name
CSSC
Certification
TDG203255520
Model Number
DP-M-H03AA
Operatingtemperaturerange:
-40°C To +85°C
Startup Time:
10 Sec
Angular Rate:
≥±400°/sec
Productname:
AHRS System
Accuracy:
±0.5 Degrees
Alignment Time:
＜10min
Updaterate:
Up To 1000 Hz
Angular Attitude:
Any Orientation
Mtbf:
＞20000 Hours
Vibration:
20~2000Hz,6.06g
Product Description
 Series Attitude and Heading Reference Systems(AHRS)
Deep pilot Model DP-M-H03AA
Accelerometer Months Bias Repeatability(1σ) ≤50μg
Months Scale Factor Accuracy(1σ) ≤50ppm
Gyro Bias Repeatability(1σ) ≤0.02°/hr,1σ
Scale Factor Accuracy(1σ) ≤50ppm
Random walk(1σ) ≤0.004°/√hr
Features Angular Rate ≥±400°/sec
Angular Acceleration 100000°/sec2
Acceleration ＞25g
Angular Attitude  Any Orientation
Startup time 10 sec
Input/output 3 RS422 full-duplex serial ports, 1 100M Ethernet port
Alignment time ＜10min
AHRS Applications Performance Heading Accuracy Pure inertia ≤0.2°secL+0.04°/h,RMS
INS/Single-antenna  GNSS combination ≤0.1°,RMS
INS/Dual-antenna GNSS combination ≤0.1°,RMS
Pitch & Roll Accuracy Pure inertia ≤0.05°,RMS
INS/GNSS combination ≤0.02°,RMS
Characteristics Power consumption ＜15W
Dimensions(Lmm×Wmm×Hmm) 110×110×100
Weight ＜1.7kg
Temperature  -40℃~60℃
Shock 15g,Half-sine wave 11ms
Input Voltage DC24V(±25%)
cooling Conduction to mounting plate
Vibration  20~2000Hz,6.06g
MTBF ＞20000 hours


Tags:

attitude heading reference system,

system ahrs,

ahrs mems
