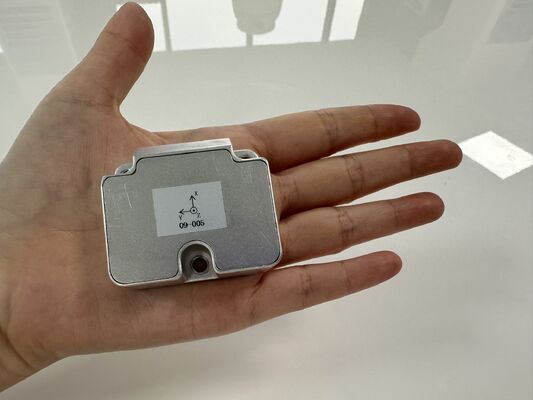

MEMS Inertial Measurement Unit (MEMS-IMU)-Full Temperature Performance
  • name
  • name
  • name
  • name

MEMS Inertial Measurement Unit (MEMS-IMU)-Full Temperature Performance

MOQ: 1
Standard Packaging: 30cm*30cm*28cm
Delivery Period: 30days
Payment Method: T/T
Supply Capacity: 50/1day
Details Information
Product Description
Detail Information
Place of Origin
WUHAN
Brand Name
CSSC
Certification
TRF230258125
Model Number
MEMS 006
Product Description
Performance Specifications
Parameter Unit Type006
Heading Accuracy(RMS) Heading ° 0.1(2m base line)
Pitch / Roll ° 0.08
Position Accuracy Horizontal m 1.5m(Single Point)(RTK:0.8cm+1ppm)

(RMS) Vertical m 3m(Single Point)(RTK:0.8cm+1ppm)
Velocity Accuracy(RMS) m/s 0.1
Gyroscope Measurement Range °/s ±400
Bias Stability (10 s smoothing, 1σ, room temp) °/h 1
Bias Variation over Temperature (10 s smoothing, RMS) °/h 10
Bias Repeatability °/h 1
Angle Random Walk MEMS Inertial Measurement Unit (MEMS-IMU)-Full Temperature Performance 0°/ 0.05
Cross Coupling % 0.1
Accelerometer Measurement Range g ±10
Bias Stability (10 s smoothing, 1σ, room temp) mg 0.05
Bias Variation over Temperature (10 s smoothing, RMS) mg 2
Bias Repeatability mg 0.2
Cross Coupling % 0.1
Data Update Rate Hz 100(customizable)
Operating Voltage V 9~36
Power Consumption W 5
Operating Temperature ℃ -45~80
Dimensions mm 88×68×46
Weight g ≤300g
Interfaces
2 × RS-422 / RS-232 (navigation output)

1 × RS-232 (differential output)

1 × PPS output

1 × CAN output


Tags:

mems based inertial navigation system,

mems inertial measurement unit,

mems imu inertial navigation system
