Ultra-Low Noise MEMS Navigation System-Low-Power Consumption MEMS Measurement Unit
  • name
  • name
  • name
  • name

Ultra-Low Noise MEMS Navigation System-Low-Power Consumption MEMS Measurement Unit

MOQ: 1
Standard Packaging: 30cm*30cm*28cm
Delivery Period: 30days
Payment Method: T/T
Supply Capacity: 50/1day
Details Information
Product Description
Detail Information
Place of Origin
WUHAN
Brand Name
CSSC
Certification
TFW502333259
Model Number
DP-MS03AAA
Bias Stability:
≤10°/h
Durability:
Shock And Vibration Resistant
Pitch And Roll:
≤0.05° (1σ)
Updaterate:
Up To 1000 Hz
Productname:
MEMS Inertial Navigation System
Heading:
≤0.15° (1σ)
Technology:
Micro-Electro-Mechanical Systems (MEMS)
Size:
Compact And Lightweight
Calibration:
Factory Calibrated With Self-calibration Features
Function:
Inertial Navigation And Positioning
Technologytype:
MEMS (Micro-Electro-Mechanical Systems)
Type:
Inertial Navigation System
Powerconsumption:
Low Power Consumption
Product Description

Performance Specifications

Parameter(Typical Values) Unit DP-MS03AAA
Gyroscope Measurement Range °/s ±450
Bias Offset °/h 3
Bias Instability (Allan Variance) °/h 0.03
Bias Stability (10 s smoothing, 1σ, room temp) °/h 0.4
Bias over Full Temperature Range °/h 2
Bias Repeatability °/h 0.3
Angle Random Walk Ultra-Low Noise MEMS Navigation System-Low-Power Consumption MEMS Measurement Unit 0°/ 0.03
Scale Factor Nonlinearity ppm 100
Scale Factor Repeatability ppm 100
Bandwidth Hz 150
Cross Coupling % 0.1
Accelerometer Measurement Range g ±10
Bias Stability (10 s smoothing, 1σ, room temp) mg 0.03
Bias Variation over Temperature mg 0.2
Bias Repeatability mg 2
Scale Factor Repeatability ppm 500
Bandwidth Hz 100
Cross Coupling % 0.1
Start-up Stabilization Time s 1
Data Update Rate Hz 1000
Operating Voltage V 5±0.5
Steady-state Power Consumption W 1.5
Operating Temperature ℃ -40~80
Dimensions mm 44.8×38.6×20
Weight g 52±5
Start-up Stabilization Time
RS-422

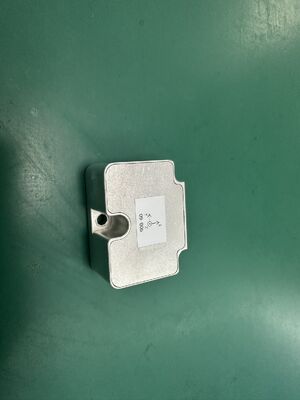

Ultra-Low Noise MEMS Navigation System-Low-Power Consumption MEMS Measurement Unit 1

Tags:

mems based inertial navigation system,

mems inertial measurement unit,

mems imu inertial navigation system
