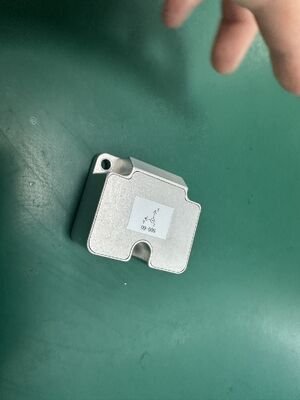

Shock-Resistant High-Dynamic Inertial System-MEMS
  • name
  • name
  • name
  • name

Shock-Resistant High-Dynamic Inertial System-MEMS

MOQ: 1
Price: 30000-50000RMB
Standard Packaging: 30cm*30cm*28cm
Delivery Period: 14days
Payment Method: T/T
Supply Capacity: 50/1day
Details Information
Product Description
Detail Information
Place of Origin
WUHAN
Brand Name
CSSC
Certification
TDG205962459
Model Number
DP-MS2AA
Usage:
Position Sensor,Vibration Sensor,Inertial Navigation,inertial Sensor,Speed Sensor
Output:
Digital Sensor,Analog Sensor,Other,INS,inertial Sensor
Theory:
Other,Optical Sensor,Current Sensor,GPS Navigation
Type:
Gps Navigator,Inertial Navigation System,Gps Tracker
Function:
Touch Screen,Bluetooth-enabled,Photo Viewer,Mp3/Mp4,Radio Tuner
Product Name:
Inertial Navigation Systems,Compass Sensors,Accelerometer,INS,Fiber Optic Gyros
Wide Operating Temperature:
-40~+85℃
Product Description

Performance Specifications

Parameter(Typical Values) Unit DP-MS2AA
Gyroscope Measurement Range °/s ±450
Bias Offset °/h 10
Bias Instability (Allan Variance) °/h 0.1
Bias Stability (10 s smoothing, 1σ, room temp) °/h 2
Bias over Full Temperature Range °/h 10
Bias Repeatability °/h 1
Angle Random Walk Shock-Resistant High-Dynamic Inertial System-MEMS 0°/ 0.05
Scale Factor Nonlinearity ppm 100
Scale Factor Repeatability ppm 100
Bandwidth Hz 250
Cross Coupling % 0.1
Accelerometer Measurement Range g ±40
Bias Stability (10 s smoothing, 1σ, room temp) mg 0.2
Bias Variation over Temperature mg 1
Bias Repeatability mg 2
Scale Factor Repeatability ppm 500
Bandwidth Hz 100
Cross Coupling % 0.1
Start-up Stabilization Time s 1
Data Update Rate Hz 1000
Operating Voltage V 5±0.5
Steady-state Power Consumption W 1.5
Operating Temperature ℃ -40~80
Dimensions mm 44.8×38.6×20
Weight g 52±5
Start-up Stabilization Time
RS-422

Shock-Resistant High-Dynamic Inertial System-MEMS 1
