Highly Integrated Micro Inertial Navigation Module-Real-Time Dynamic Attitude Measurement System
  • name
  • name
  • name
  • name

Highly Integrated Micro Inertial Navigation Module-Real-Time Dynamic Attitude Measurement System

MOQ: 1
Price: 30000-55000RMB
Standard Packaging: 30cm*30cm*28cm
Delivery Period: 14days
Supply Capacity: 50/1day
Details Information
Product Description
Detail Information
Place of Origin
WUHAN
Brand Name
CSSC
Certification
TDD630285159
Model Number
DP-MS3AA
Function:
Inertial Navigation And Positioning
Powerconsumption:
Less Than 100 MW
Operating Temperature:
-40℃～﹢55℃
Heading:
≤0.15° (1σ)
Supply Voltage:
24V DC Rated(12～32V DC)
Technology:
Micro-Electro-Mechanical Systems (MEMS)
Pitch And Roll:
≤0.05° (1σ)
Operatingtemperaturerange:
-40°C To +85°C
Supplyvoltage:
3.3V To 5V
Initializationtime:
Less Than 10 Seconds
Updaterate:
100 Hz
Size:
Compact And Lightweight
Applicationfields:
Aerospace, Robotics, Automotive, Consumer Electronics
Bias Stability:
≤10°/h
Measurementaxes:
3-axis Accelerometer And 3-axis Gyroscope
Product Description

Performance Specifications

Parameter(Typical Values) Unit DP-MS3AA
Gyroscope Measurement Range °/s ±450
Bias Offset °/h 3
Bias Instability (Allan Variance) °/h 0.05
Bias Stability (10 s smoothing, 1σ, room temp) °/h 0.4
Bias over Full Temperature Range °/h 2
Bias Repeatability °/h 0.3
Angle Random Walk Highly Integrated Micro Inertial Navigation Module-Real-Time Dynamic Attitude Measurement System 0°/ 0.05
Scale Factor Nonlinearity ppm 100
Scale Factor Repeatability ppm 100
Bandwidth Hz 150
Cross Coupling % 0.1
Accelerometer Measurement Range g ±10
Bias Stability (10 s smoothing, 1σ, room temp) mg 0.05
Bias Variation over Temperature mg 0.2
Bias Repeatability mg 2
Scale Factor Repeatability ppm 500
Bandwidth Hz 100
Cross Coupling % 0.1
Start-up Stabilization Time s 1
Data Update Rate Hz 1000
Operating Voltage V 5±0.5
Steady-state Power Consumption W 1.5
Operating Temperature ℃ -40~80
Dimensions mm 44.8×38.6×20
Weight g 52±5
Start-up Stabilization Time
RS-422

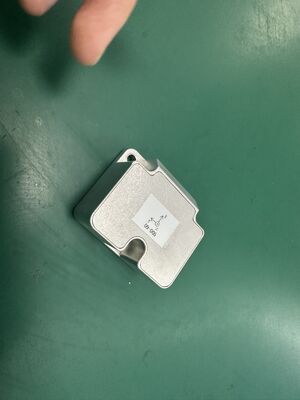

Highly Integrated Micro Inertial Navigation Module-Real-Time Dynamic Attitude Measurement System 1
