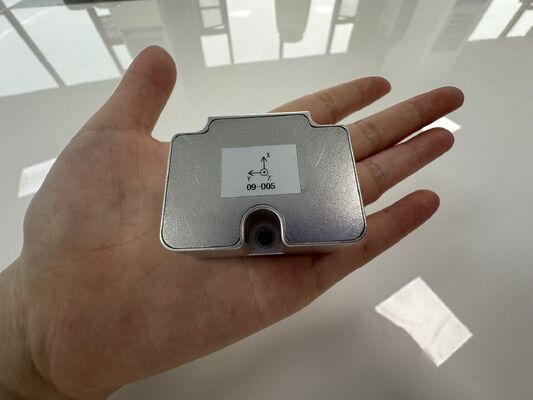

High-Precision MEMS Navigation System
  • name
  • name
  • name
  • name

High-Precision MEMS Navigation System

MOQ: 1
Standard Packaging: 30cm*30cm*28cm
Delivery Period: 30days
Payment Method: T/T
Supply Capacity: 50/1day
Details Information
Product Description
Detail Information
Place of Origin
WUHAN
Brand Name
CSSC
Certification
KJM365025525
Model Number
MEMS 007
Usage:
Position Sensor,Vibration Sensor,Inertial Navigation,inertial Sensor,Speed Sensor
Output:
Digital Sensor,Analog Sensor,Other,INS,inertial Sensor
Theory:
Capacitance Sensor,Other,Optical Sensor,Current Sensor,GPS Navigation
Type:
Gps Navigator,Inertial Navigation System,Gps Tracker
Warranty:
12 Months,1 Years,3 Years,One Year
Function:
Touch Screen,Bluetooth-enabled,Photo Viewer,Mp3/Mp4,Radio Tuner
Weight:
≤150g,<80gram,<700g,≤80 Grams,56g
Product Name:
Inertial Navigation Systems,Compass Sensors,Accelerometer,INS,Fiber Optic Gyros
Screen Size:
10.1 Inch,30x40x3mm,9 Inch,5 Inch,no
Material:
Metal,Zinc,MEMS,300 Series Stainless Steel
Power Supply:
3.3V,5v Or 9~36v,DC +7V~+15VDC,18V DC- 36V DC
Name:
Mini AHRS 3000 Attitude Heading Reference System,IMU300 High Accuracy Digital IMU,High Accuracy Strapdown MEMS INS Inertial Navigation Systems
Ram:
DDR 1G/2G,2G
Wide Operating Temperature:
-40~+85℃
Rom:
16G/32G
Pixel:
HD 1024*600
Network:
WIFI/4G
Product Description

Performance Specifications

Parameter Unit Type 007
Heading Accuracy(RMS) Heading ° 0.1(2m base line)
Pitch / Roll ° 0.05
Position Accuracy Horizontal m 1.5m(Single Point)(RTK:0.8cm+1ppm)

(RMS) Vertical m 3m(Single Point)(RTK:0.8cm+1ppm)
Velocity Accuracy(RMS) m/s 0.1
Gyroscope Measurement Range °/s ±400
Bias Stability (10 s smoothing, 1σ, room temp) °/h 0.4
Bias Variation over Temperature (10 s smoothing, RMS) °/h 2
Bias Repeatability °/h 0.3
Angle Random Walk High-Precision MEMS Navigation System 0°/ 0.02
Cross Coupling % 0.1
Accelerometer Measurement Range g ±10
Bias Stability (10 s smoothing, 1σ, room temp) mg 0.05
Bias Variation over Temperature (10 s smoothing, RMS) mg 2
Bias Repeatability mg 0.2
Cross Coupling % 0.1
Data Update Rate Hz 100(customizable)
Operating Voltage V 9~36
Power Consumption W 5
Operating Temperature ℃ -45~80
Dimensions mm 88×68×46
Weight g ≤300g
Interfaces
2 × RS-422 / RS-232 (navigation output)

1 × RS-232 (differential output)

1 × PPS output

1 × CAN output


Tags:

mems based inertial navigation system,

mems inertial measurement unit,

mems imu inertial navigation system
