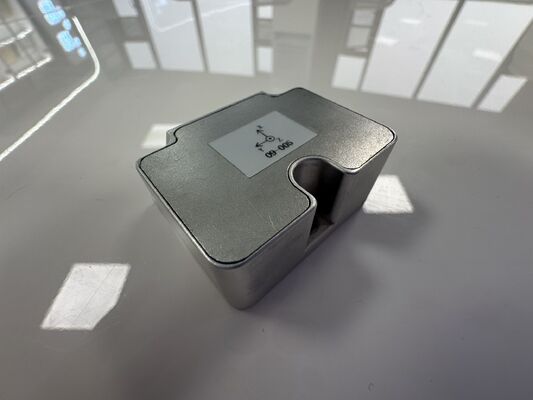

EMES Inertial Navigation System-Calibration High Accuracy

MOQ:	1
Standard Packaging:	30cm30cm28cm
Delivery Period:	30days
Payment Method:	T/T
Supply Capacity:	50/1day

Details Information

Product Description

Detail Information

Place of Origin

WUHAN

Brand Name

Certification

YHK325005896

Model Number

MEMS001

Highlight:

EMES Inertial Navigation System

Calibration Inertial Navigation System

High Accuracy EMES Inertial Navigation System

Product Description

The product is composed of MEMS gyroscope chips, MEMS accelerometer chips, temperature sensors, digital signal processing circuits, as well as structural and embedded software components. It adopts flexible interconnection technology and integrates advanced compensation algorithms, including full-temperature compensation, installation misalignment compensation, and nonlinearity compensation.

The system is capable of delivering stable and reliable, error-compensated measurement data under static, dynamic, and harsh operating conditions. It is designed to be form-fit compatible with the STIM300 series, enabling seamless drop-in replacement.

Parameter(Typical Values)		Unit	Type 001
Gyroscope	Measurement Range	°/s	±400
	Bias Offset	°/h	15
	Bias Instability (Allan Variance)	°/h	0.3
	Bias Stability (10 s smoothing, 1σ, room temp)	°/h	3
	Bias over Full Temperature Range	°/h	20
	Bias Repeatability	°/h	3
	Angle Random Walk	°/	0.15
	Scale Factor Nonlinearity	ppm	100
	Scale Factor Repeatability	ppm	100
	Bandwidth	Hz	250
	Cross Coupling	%	0.1
Accelerometer	Measurement Range	g	±80
	Bias Stability (10 s smoothing, 1σ, room temp)	mg	1
	Bias Variation over Temperature	mg	0.5
	Bias Repeatability	mg	5
	Scale Factor Repeatability	ppm	500
	Bandwidth	Hz	100
	Cross Coupling	%	0.1
Start-up Stabilization Time		s	1
Data Update Rate		Hz	1000
Operating Voltage		V	5±0.5
Steady-state Power Consumption		W	1.5
Operating Temperature		℃	-45~80
Dimensions		mm	44.8×38.6×20
Weight		g	52±5
Start-up Stabilization Time			RS-422
