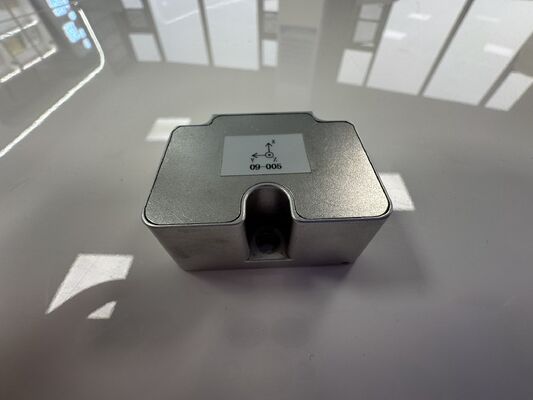

Precision MEMS Navigation Algorithm-Bias Compensation
  • name
  • name
  • name
  • name

Precision MEMS Navigation Algorithm-Bias Compensation

MOQ: 1
Standard Packaging: 30cm*30cm*28cm
Delivery Period: 30days
Payment Method: T/T
Supply Capacity: 50/1day
Details Information
Product Description
Detail Information
Place of Origin
WUHAN
Brand Name
CSSC
Certification
KJH851203685
Model Number
MEMS003
Highlight:

Bias Compensation Algorithm

,

MEMS Navigation Algorithm

,

Precision MEMS Inertial Navigation System

Product Description
Performance Specifications
Parameter(Typical Values) Unit Type 003
Gyroscope Measurement Range °/s ±400
Bias Offset °/h 3
Bias Instability (Allan Variance) °/h 0.05
Bias Stability (10 s smoothing, 1σ, room temp) °/h 0.4
Bias over Full Temperature Range °/h 2
Bias Repeatability °/h 0.3
Angle Random Walk Precision MEMS Navigation Algorithm-Bias Compensation 0°/ 0.05
Scale Factor Nonlinearity ppm 100
Scale Factor Repeatability ppm 100
Bandwidth Hz 150
Cross Coupling % 0.1
Accelerometer Measurement Range g ±10
Bias Stability (10 s smoothing, 1σ, room temp) mg 0.05
Bias Variation over Temperature mg 0.2
Bias Repeatability mg 2
Scale Factor Repeatability ppm 500
Bandwidth Hz 100
Cross Coupling % 0.1
Start-up Stabilization Time s 1
Data Update Rate Hz 1000
Operating Voltage V 5±0.5
Steady-state Power Consumption W 1.5
Operating Temperature ℃ -45~80
Dimensions mm 44.8×38.6×20
Weight g 52±5
Start-up Stabilization Time
RS-422


Tags:

mems based inertial navigation system,

mems inertial measurement unit,

mems imu inertial navigation system
