Attitude Determination-EMES Inertial Navigation System
  • name
  • name
  • name
  • name

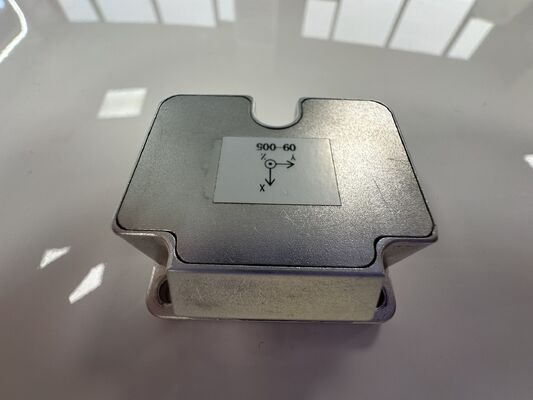

Attitude Determination-EMES Inertial Navigation System

MOQ: 1
Standard Packaging: 30cm*30cm*28cm
Delivery Period: 30days
Payment Method: T/T
Supply Capacity: 50/1day
Details Information
Product Description
Detail Information
Place of Origin
WUHAN
Brand Name
CSSC
Certification
RTG325028230
Model Number
MEMS 004
Product Description
Performance Specifications
Parameter Unit Type 004
Heading Accuracy(RMS) Heading ° 0.1(2m base line)
Pitch / Roll ° 0.2
Position Accuracy Horizontal m 1.5m(Single Point)(RTK:0.8cm+1ppm)

(RMS) Vertical m 3m(Single Point)(RTK:0.8cm+1ppm)
Velocity Accuracy(RMS) m/s 0.1
Gyroscope Measurement Range °/s ±400
Bias Stability (10 s smoothing, 1σ, room temp) °/h 10
Bias Variation over Temperature (10 s smoothing, RMS) °/h 60
Bias Repeatability °/h 20
Angle Random Walk Attitude Determination-EMES Inertial Navigation System 0°/ 0.5
Cross Coupling % 0.2
Accelerometer Measurement Range g ±10
Bias Stability (10 s smoothing, 1σ, room temp) mg 0.05
Bias Variation over Temperature (10 s smoothing, RMS) mg 2
Bias Repeatability mg 0.2
Cross Coupling % 0.1
Data Update Rate Hz 100(customizable)
Operating Voltage V 9~36
Power Consumption W 5
Operating Temperature ℃ -45~80
Dimensions mm 88×68×46
Weight g ≤300g
Interfaces
2 × RS-422 / RS-232 (navigation output)

1 × RS-232 (differential output)

1 × PPS output

1 × CAN output


Tags:

mems based inertial navigation system,

mems inertial measurement unit,

mems imu inertial navigation system
